Description

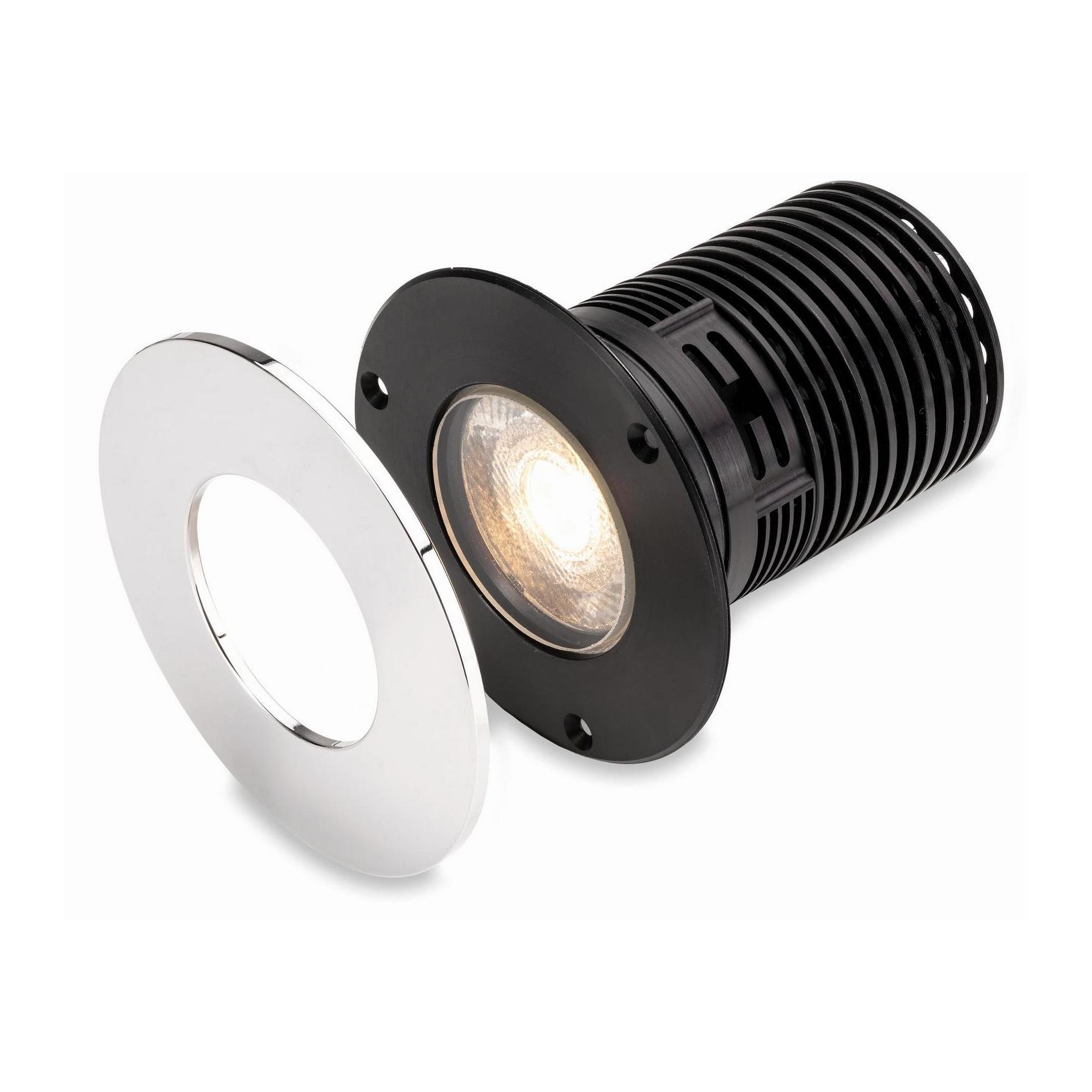

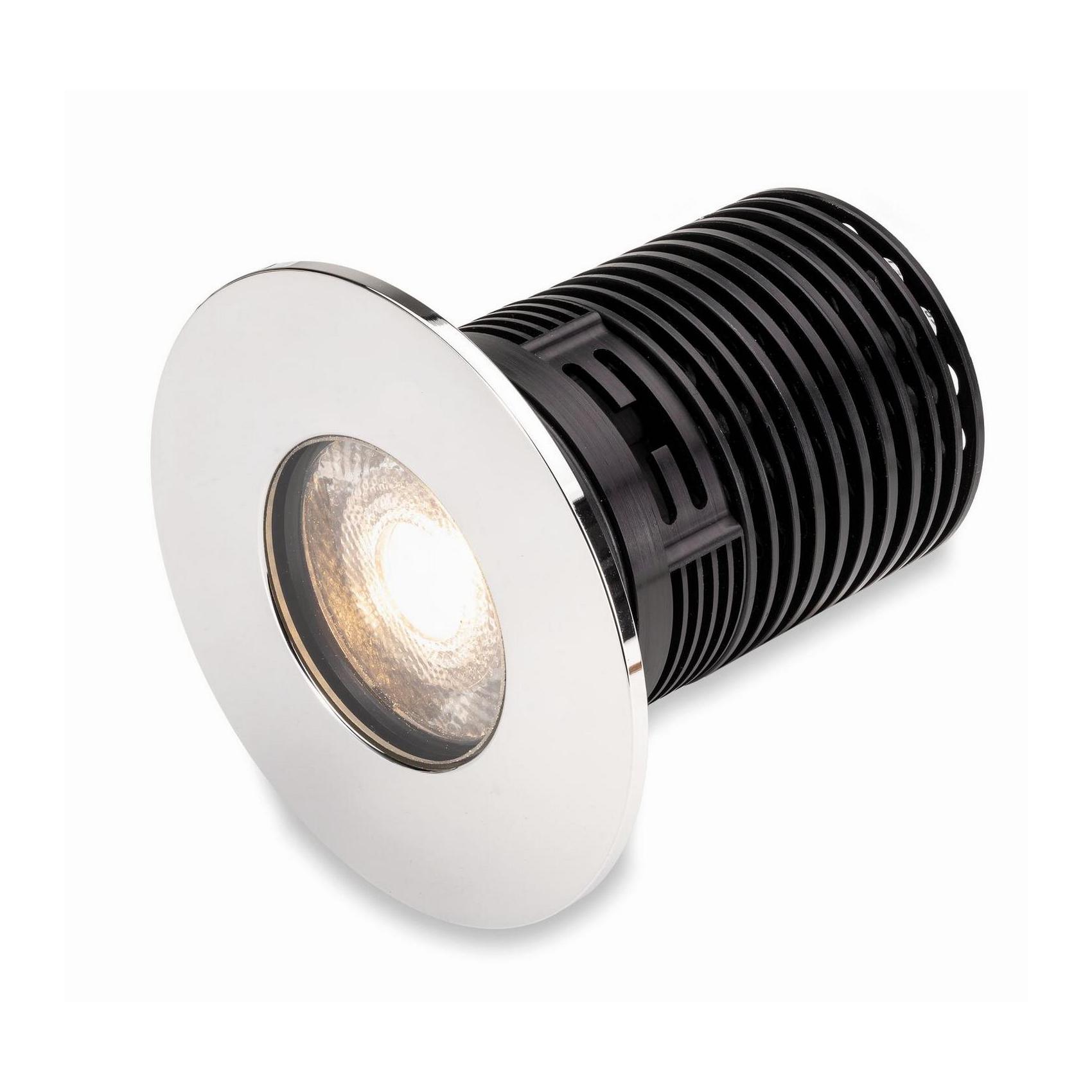

(R)EVOLUTION
A real design “(R)evolution” generating many beats
of light from one beating “downlight-heart”.
Size
Large
Unit
Single
Frame
Flush mounted with frame
Direction
Fixed
Technical information
| voltage | 18/32 Vdc |
| power | 15 W |
| driver | Integrated driver |
| IP_rating | IP67 |
| CRI | > 90 |
| CCT | 2700, 3000, 4000 |
| GLASS | [‘Tempered’, ‘Transparent’, ‘Frosted’] |
| PLEXY | [‘Transparent’, ‘Frosted’] |
| Beam |
 10-20° |
 20-35° |
|
 35-60° |
|
 > 60° |
| Options |
 Anti-glare screen printing |
Drawings and dimensions
Diameter: 68.0 mm
Height: 90.0 mm
Overall_height: 93.5 mm
Front_diameter: 98.0 mm
Finishes and fixing
Finishes
Polished ss
Brushed ss
Anodized silver aluminum
Anodized black aluminum
RAL Coating
Bespoke Coating
Fixing
SP SYSTEM, Screws | O-Ring + Bushing on demand
