Description
Technical information
| voltage | 24 stab. Vdc |
| power | 2 W |
| driver | Integrated driver |
| IP_rating | IP20 |
| CRI | > 90 |
| CCT | 3000, 4000, 6500 K |
| GLASS | Tempered transparent |
| Beam |
 10-20° |
 20-35° |
|
 35-60° |
Drawings and dimensions
Diameter: 14.5 mm
Height: 23.0 mm
Length: 60.0 mm
Width: 12.0 mm

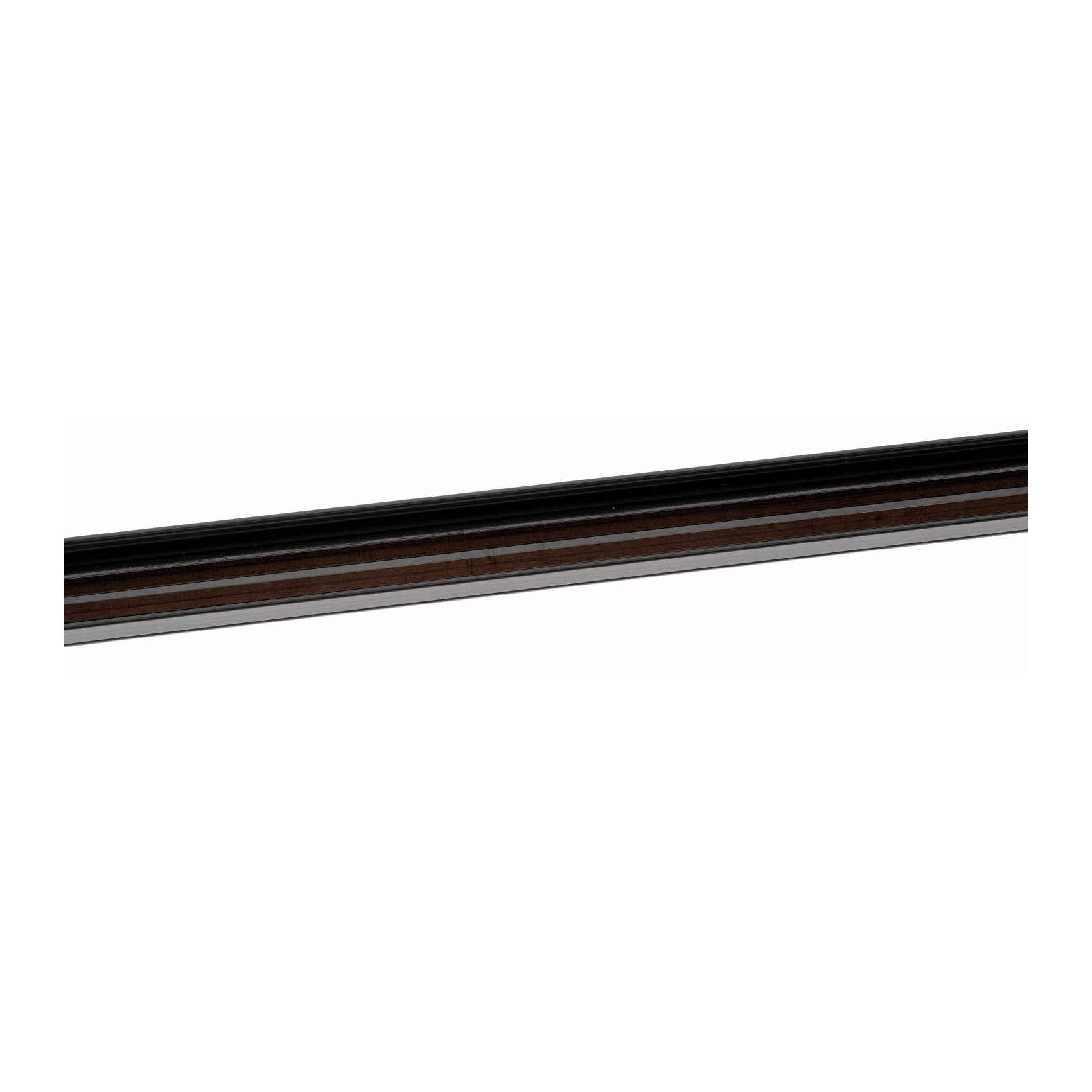

Track_feed
Total_length: 60.0 mm
Height: 32.0 mm
Width: 12.0 mm
Track_cap
Height: 14.0 mm
Width: 12.0 mm
Depth: 2.5 mm
Track_fixing_bracket
Height: 16.0 mm
Width: 8.5 mm
Track_accessories
Max_length: 2.0 mt
Finishes and fixing
Size: 14.0 x 12.0 mm – max length 1.0 m
Finishes
Anodized black aluminum
Fixing
Clips, biadhesive
